MULTIDRILL ML T

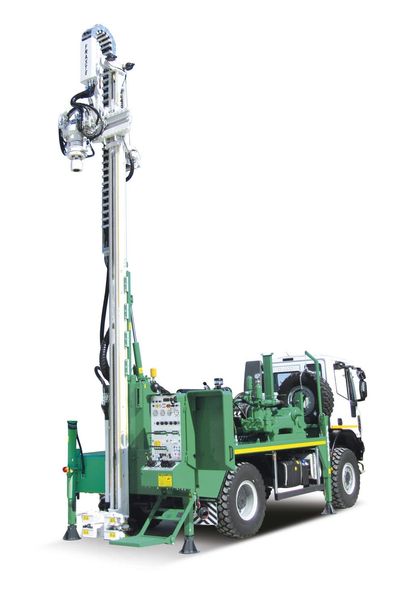

FRASTE MULTIDRILL ML T drilling rig, mounted on 2 axles light and compact truck carrier 4x4 – PTT 14 ton: efficient, fast, great reliability, top productivity rate. All top qualities of FRASTE MULTIDRILL ML, on “T”ruck fitting! FRASTE MULTIDRILL ML T keeps all features of the MULTRILL ML crawler mounted drilling rig: compact size and high performances to allow a large and multipurpose field of application among soil investigation, environmental monitoring and water well drilling. Innovative design, Stage 4 Final engines, first quality components and great care dedicated to the operator safety allow the MULTIDRILL ML T to easily work with all drilling systems : rotary drilling with direct / reverse fluid or air circulation ; DTH hammer ; roto-percussion system ; conventional and wire-lire coring. FRASTE MULTIDRILL ML T can be equipped with a wide range of drilling tools and accessories as the MULTIDRILL ML crawler mounted version, to meet all drilling needs.
Features
Power 74 Kw (100 Hp) TIER 3 - 90 Kw (120 Hp) TIER 4 F
Pull-up 6000 daN (13488 lbf)
Pull-down 3500 daN (17868 lbf)
Max rotary head torque 1900 daNm (6638 ft lbf)
RATED DRILLING CAPACITY 150 mt (492 ft)
Optional
- Main Winch
- Wire line winch
- Triplex pump
- Screw pump
- Foam pump
- Line lubricator
- Hydraulic air valve
- Hydraulic SPT device
- Remote radio control
Other optional items are available on demand for a highly customized version of the rig.
