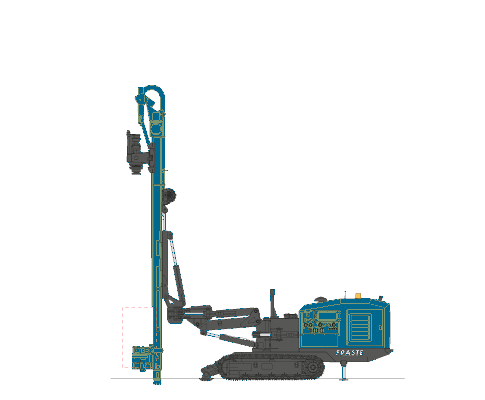

MITO 8C

 FRASTE MITO 8C drilling rigs, suitable for all foundation works, civil engineering jobs like micropiles, tie bars, ground consolidations, mineral exploration drilling, diamond core rotary drilling and other purposes.

 Power                                                                                                      CAT C3.6 - Stage V - Tier 4F - 90 kw (120 Hp)

 Rotary head stroke                                                                                                           2500 - 3500 mm (8,2 - 11,5 ft)

 Nominal Pull-up force                                                                                                                       5000 daN (11240 lbf)

 Nominal Pull-down force                                                                                                                5000 daN (11240 lbf)

 Max rotary head torque                                                                                              up to 1180 daNm (8703 lbf*ft)

 Max rotary head speed                                                                                                                                  up to 1100 rpm

 Clamp                                                                                          Ø 40-250 mm (1,6"-9,8") / Ø 60-280 mm (2,4"-11")

 Weight                                                                                                                                                   ~ 8100 Kg (~ 18000 lbf)

• Marteau hydraulique
• Mandrin hydraulique

D’autres options sont disponibles sur demande pour offrir le plus grand nombre de personnalisations possibles.
